Amcrest PoE NVR Buyer’s Guide: Channel Capacity, Bandwidth, and AI Breakdown

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Selecting an amcrest poe nvr requires balancing camera count, incoming network throughput, internal storage bays, and onboard intelligence. Surveillance managers often struggle to reconcile maximum channel support against actual decoding and bandwidth limits. A sixteen-camera recorder cannot perform reliably if total incoming traffic exceeds the hardware processor ceiling, making it critical to evaluate both physical port layouts and incoming bit-rate specifications before deploying hardware.

The Amcrest product line organizes its recording appliances by processing tiers and network topologies. Compact units offer integrated power-over-Ethernet ports with pre-installed drives for single-box deployments, while enterprise tiers provide up to thirty-two channels with elevated throughput for high-density environments. The catalog also features dedicated artificial intelligence recorders without integrated switches, complemented by external PoE+ network switches and active-deterrence optical endpoints to complete multi-point commercial installations.

Criteria matrix What each model in this report is credited with

Rows are the criteria that come up in the pros and cons listed for this lineup. A check means the criterion is named in this report’s write-up of that model; a dash means it is not. Criteria that apply to every model, or to only one, are left out because they separate nothing.

Criterion	4K 16CH 8 Port 4.0★	4K 8CH POE NVR 4.2★	5Series 4K NVR 32-Channel 4.9★	4K NV4216-AI 16CH AI 4.7★	UltraHD 4K 4.3★	8-Port POE+ Switch 4.2★
Internal	✓Named	Not named	✓Named	✓Named	✓Named	✓Named
Hard drives	✓Named	✓Named	✓Named	✓Named	Not named	Not named
Integrated PoE ports	Not named	✓Named	✓Named	✓Named	Not named	Not named
Drive bays supporting	Not named	Not named	✓Named	✓Named	Not named	Not named
Real-time playback	✓Named	Not named	✓Named	Not named	Not named	Not named
Bandwidth ceiling	✓Named	✓Named	Not named	Not named	Not named	Not named
Incoming network	✓Named	Not named	✓Named	Not named	Not named	Not named
Hard drive	Not named	✓Named	✓Named	Not named	Not named	Not named
Criteria named	5 / 8	4 / 8	7 / 8	4 / 8	1 / 8	1 / 8

Built from the wording of this report, not from a bench test. A dash is not a fault: it only means the write-up does not mention that point for that model. Star figures are the average rating left by Amazon buyers, read from the product listing.

Amcrest PoE NVRs Lineup at a Glance

The Models in Detail

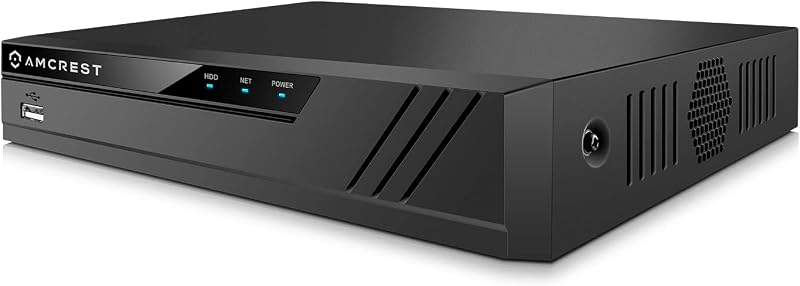

Amcrest 4K 16CH 8 Port PoE

Best for: Mid-sized facilities needing 8 PoE plus LAN expansion

Pros

• 16 channels with 8 direct PoE ports
• Supports up to 10TB hard drives
• Pass-through AI support for two 4K cameras
• H.265 compression bandwidth optimization

Cons

• No internal storage included in listing
• 80Mbps bandwidth ceiling limits 16-channel 4K

The Amcrest 4K 16CH 8 Port PoE, cataloged under model number amcrest nv4116e-a2, delivers a hybrid network infrastructure supporting up to sixteen IP cameras while housing eight physical PoE ports on the rear chassis. This layout manages eight direct plug-and-play camera feeds while allowing an additional eight network feeds to be ingested across your local area network through an external switch. Bandwidth is capped at 80Mbps incoming throughput, which allows recording up to eight 4K streams by leveraging H.265 compression and tuning individual camera bit rates to 1792 kbps. The listing notes storage compatibility with single hard drives up to 10TB, providing sufficient runway for multi-channel video archives.

Local decoding performance handles split-screen monitoring across several standard formats, providing real-time playback for eight channels at 1080p, four channels at 4MP, or two channels at 4K resolution at 30 frames per second. The amcrest 16 channel poe nvr passes through smart analytics from connected cameras, supporting up to two 4K AI channels at 30 frames per second, though the appliance itself does not generate internal AI processing. For commercial deployments integrating diverse amcrest ip camera poe hardware, this recorder coordinates streams through the Amcrest View application, QR-code remote configurations, and hardwired router connections.

This model suits facility supervisors who want to power perimeter cameras directly from the recorder chassis while retaining spare channel capacity for building expansion over network switches. It yields to higher-tier enterprise appliances when the facility requires more than eight onboard physical PoE ports or incoming network traffic exceeds 80Mbps.

Amcrest 4K 8CH POE NVR

Best for: Small offices wanting turnkey 8-channel recording with storage

Pros

• Pre-installed 2TB Seagate SkyHawk drive
• 8 dedicated plug-and-play PoE ports
• Supports 4K recording up to 30fps
• Includes USB mouse and network cable

Cons

• Capped at 6TB maximum storage drive
• Limited to 8 total monitoring channels

The Amcrest 4K 8CH POE NVR, identified as the amcrest nv4108e platform, provides a self-contained monitoring station engineered for streamlined installation. Featuring eight integrated PoE ports, this amcrest 8 channel poe nvr supplies power and data transmission to every connected device over single network runs without requiring secondary switches. The hardware comes equipped with a pre-installed 2TB Seagate SkyHawk surveillance hard drive and supports single hard drives up to 6TB in capacity. It manages an incoming bandwidth ceiling of 80Mbps, which supports up to seven 4K cameras running concurrently at 30 frames per second.

Advanced H.265 video compression reduces bit-rate requirements and conserves hard drive volume without sacrificing critical image clarity. Remote administration utilizes the Amcrest View mobile toolset, allowing operators to scan a physical QR code on the chassis for direct stream authentication. The package includes setup accessories such as an optical USB mouse, an Ethernet patch cable, and rapid onboarding documentation. When evaluated alongside alternative multi-channel solutions such as an onwote 4k security camera setup, the integrated plug-and-play PoE architecture significantly reduces network configuration overhead.

This recorder is ideal for retail shop managers and homeowners who require a turnkey eight-channel system with pre-installed storage ready for immediate activation. It gives way to the sixteen-channel NV4116E-A2 when surveillance coverage demands more than eight physical viewing locations.

Amcrest 5Series 4K NVR 32-Channel NV5232E-16P

Best for: Enterprise facilities requiring 32 channels and high throughput

Pros

• 320Mbps incoming network throughput
• 32 channels with 16 integrated PoE ports
• Dual hard drive bays supporting up to 20TB
• Simultaneous 4-channel 4K real-time playback

Cons

• Hard drives not included
• Large footprint requires dedicated equipment rack

The Amcrest 5Series 4K NVR 32-Channel NV5232E-16P represents the heavy-duty tier within the Amcrest recording catalog. Marketed as the amcrest nv5232e-16p, this system manages up to thirty-two distinct camera streams, supported by sixteen integrated PoE ports built directly into the rear enclosure. With an extensive incoming bandwidth pipeline of 320Mbps, the recorder ingests dense, high-resolution footage from thirty-two 4K cameras at 30 frames per second without frame dropping or interface delay. Storage capacity accommodates two separate hard drives of up to 10TB each, establishing a 20TB internal archive ceiling.

Simultaneous live decoding allows operators to monitor four 4K channels concurrently at 30 frames per second, while the onboard video processor dials down remaining active display panels to 1080p resolution at 30 frames per second to preserve system stability. The device operates across harsh environmental temperature bands from 14°F to 131°F (-10°C to +55°C), ensuring reliability when mounted inside ventilated server cabinets or unconditioned utility closets. Video transmission protocols accommodate both hardwired Ethernet cameras and Amcrest Wi-Fi cameras operating across the shared network topology.

This enterprise machine suits large warehouses, manufacturing plants, and educational facilities requiring comprehensive channel counts and expansive storage retention. It yields to more compact models when installations do not exceed eight or sixteen channels, where its dual-bay chassis and elevated throughput exceed system requirements.

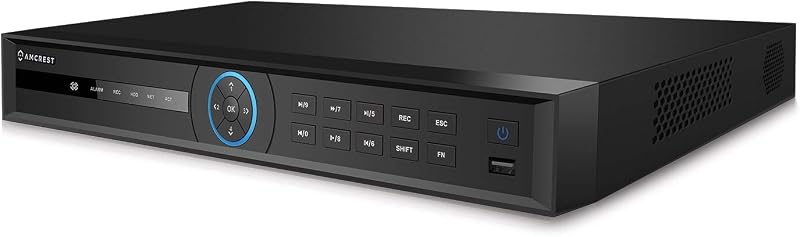

Amcrest 4K NV4216-AI 16CH AI Smart

Best for: Security teams needing server-side AI analytics over LAN

Pros

• Onboard facial recognition and vehicle classification
• Dual drive bays supporting up to 16TB
• Supports 16 channels up to 12MP resolution
• Includes people counting and heat map analytics

Cons

• No integrated PoE ports included
• Hard drives must be purchased separately

The Amcrest 4K NV4216-AI 16CH AI Smart takes a specialized architectural approach by integrating internal artificial intelligence processors rather than built-in PoE power ports. Known as the amcrest nv4216-ai, this sixteen-channel amcrest 4k nvr decodes up to 12MP resolution camera streams across an external switching network. Storage architecture supports two hard drives up to 8TB each, enabling a 16TB total storage configuration. The rear panel provides an HDMI display interface, an RCA audio input, a USB connection, and an Ethernet uplink port to interface with external network infrastructure.

Unlike basic recorders that rely entirely on edge camera processing, this AI appliance executes server-side facial recognition and detection, human and vehicle classification, heat mapping, people counting, and tripwire or perimeter intrusion rules. Decoding hardware processes two channels of 4K streams at 30 frames per second or eight channels of 1080p footage at 30 frames per second simultaneously. Systems configured alongside advanced lorex security cameras or Amcrest optics can leverage centralized object classification to eliminate false motion alerts caused by foliage or weather shifts.

This intelligent hub suits security teams that already maintain a dedicated PoE networking backbone and require server-side human and vehicle metadata indexing. It yields to the NV4116E-A2 or NV4108E when administrators prefer integrated PoE ports that eliminate the need for external network switches.

Amcrest UltraHD 4K

Best for: Perimeter security requiring color night vision and deterrence

Pros

• 4K resolution with 129-degree wide viewing angle
• Dual illumination color night vision up to 49ft
• Heavy-duty IP67 weatherproof metal housing
• Onboard human, vehicle, and face detection

Cons

• Frame rate limited to 15fps at 4K
• Requires separate NVR or MicroSD card

The Amcrest UltraHD 4K bullet camera, model IP8M-2796EW-AI, serves as an intelligent edge sensor designed to feed detailed optical data into an amcrest poe nvr ecosystem. Capturing 4K video at 15 frames per second, the camera utilizes a 1/2.8-inch 8MP progressive scan CMOS sensor matched with an ultra-wide 129-degree horizontal field of view. The chassis is constructed from heavy-duty weatherproof metal carrying an IP67 rating, ensuring complete resistance to dust intrusion, moisture, and extreme outdoor weather elements.

Illumination hardware incorporates a dual-lighting system with Full NightColor white LEDs and standard infrared LEDs to illuminate subjects up to 49 feet in total darkness. Internal intelligence delivers autonomous human, face, and vehicle detection alongside perimeter tripwire and intrusion rules that trigger active deterrent features. For users assembling a complete amcrest security camera system ip layout, this camera offers recording flexibility via local MicroSD storage up to 256GB, direct Amcrest NVR management, or Blue Iris recording software over encrypted SSL/HTTPS connections.

This optical hardware is recommended for perimeter gates, exterior parking structures, and building entry points where active deterrence and color night identification are essential. It is not an NVR itself, relying on central recording hardware or local storage media to maintain rolling archives.

Amcrest 8-Port POE+ Switch

Best for: Network setups expanding PoE ports for remote cameras

Pros

• 8 PoE+ ports with 2 dedicated uplink ports
• Supports up to 30W per port with 96W total
• Rugged unmanaged metal desktop chassis
• Plug-and-play with Auto-MDIX negotiation

Cons

• 10/100 Fast Ethernet speeds on PoE ports
• Unmanaged switch lacks VLAN software controls

The Amcrest 8-Port POE+ Switch provides network power and data transport for surveillance systems operating portless NVRs or distributed IP camera layouts. This unmanaged 10/100 desktop switch incorporates eight PoE+ ports adhering to the IEEE 802.3at standard, backed by two dedicated uplink ports for router or NVR connections. The internal power supply delivers a cumulative 96W power budget, capable of negotiating up to 30W of continuous power per individual PoE port to support high-draw security cameras with night illuminators.

The compact desktop form factor is constructed with a rugged metal housing that manages heat dissipation passively without loud cooling fans. As an unmanaged networking appliance, setup is entirely plug-and-play, featuring Auto-MDIX cable detection and automatic speed negotiation across all ten physical interfaces. Front-mounted LED indicator lights provide immediate visual confirmation of port activity, link status, and power delivery status for rapid physical diagnostics.

This switch is the optimal network companion for port-free recorders like the NV4216-AI or for installations using the NV4116E-A2 where cameras nine through sixteen are located in a remote equipment closet. It defers to all-in-one NVRs when an administrator wants a single-enclosure deployment without auxiliary power bricks or intermediary network hardware.

Matching a Model to Your Setup

• Turnkey Small Business Installation: Choose the Amcrest 4K 8CH POE NVR to secure eight physical zones with an included 2TB hard drive and zero complex network routing.
• Expanding Mid-Sized Facility: Deploy the Amcrest 4K 16CH 8 Port PoE to connect eight direct cameras out of the box while reserving eight additional network channels for future expansion.
• High-Density Commercial Operations: Implement the Amcrest 5Series 4K NVR 32-Channel NV5232E-16P to harness 320Mbps bandwidth, sixteen integrated PoE ports, and dual 10TB storage bays.
• Centralized Video Analytics with Existing Switches: Select the Amcrest 4K NV4216-AI 16CH AI Smart to run server-side facial recognition and vehicle classification over an established LAN.
• Remote Zone Aggregation and Power Delivery: Pair the Amcrest 8-Port POE+ Switch with portless NVRs or use it to consolidate camera clusters back to a single uplink cable.
• Active Perimeter Monitoring and Deterrence: Add the Amcrest UltraHD 4K bullet camera to deliver dual-illumination color night recording and automated tripwire alarms to your NVR.

Before You Buy

When selecting an amcrest poe nvr from these listings, be aware that hard drive configurations vary substantially across models. The NV4108E-2TB includes a pre-installed 2TB drive, but the NV4116E-A2, NV5232E-16P, and NV4216-AI ship without internal storage media. Buyers must procure compatible 3.5-inch surveillance-grade SATA drives separately to record video. Additionally, while the NVR packages include essential operational peripherals such as a USB mouse and power supply, the product listings do not specify that bulk Ethernet cabling is included for running long camera lines to mounting locations.

Network bandwidth limitations also dictate camera operational settings. Both the NV4108E and NV4116E-A2 operate with an 80Mbps incoming bandwidth ceiling. Running eight or more 4K cameras on these units requires changing encoding profiles from H.264 to H.265 and manually capping the camera bit rate to 1792 kbps to avoid dropped frames. Furthermore, while the NV4116E-A2 supports pass-through AI features from external cameras up to two 4K channels, the listing does not specify onboard analytics processors for that model, which are found exclusively on the NV4216-AI.

FAQ

Can an 80Mbps NVR record sixteen 4K cameras simultaneously?

An 80Mbps recorder cannot ingest sixteen uncompressed 4K video feeds at full frame rates. To run multiple high-resolution streams within an 80Mbps bandwidth budget, administrators must adjust compression settings from H.264 to H.265 and reduce individual camera bit rates to approximately 1792 kbps, as specified in the manufacturer documentation.

What is the difference between an NVR with built-in PoE and a portless NVR?

An NVR with built-in PoE features integrated Ethernet ports on the back panel that provide power and data directly to connected cameras over single cables. A portless NVR, such as the NV4216-AI, contains only standard network uplinks, requiring cameras to be connected and powered through external PoE switches connected to the local area network.

Does the NV4116E-A2 perform onboard facial recognition and vehicle detection?

The NV4116E-A2 does not contain an internal artificial intelligence analytics engine. It can ingest and record smart analytics metadata generated by compatible AI IP cameras for up to two channels at 4K resolution, but server-side AI processing requires an analytics-dedicated unit like the NV4216-AI.

How does the dual illumination night vision operate on the Amcrest UltraHD 4K camera?

The camera features both infrared LEDs and warm white Full NightColor LEDs. Under standard night conditions, infrared illumination maintains discreet black-and-white monitoring, switching automatically to warm white LEDs to deliver full-color video when human or vehicle motion triggers an active alert event within its 49-foot range.

Can the Amcrest 8-Port POE+ Switch power high-draw PTZ or active deterrence cameras?

The switch complies with the IEEE 802.3at PoE+ standard, which delivers up to 30W of continuous power per individual port up to a total cumulative budget of 96W across all ports. This power delivery supports standard fixed IP cameras as well as active deterrence cameras equipped with integrated LED spotlights and sirens.
