Whirlpool Glass Cooktop Replacement Guide: OEM Models Compared

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Choosing a whirlpool glass cooktop replacement requires identifying the exact factory-engineered part that matches your specific stove model rather than guessing based on surface appearance alone. While several electric range tops look identical from above, each replacement part is built with specific mounting brackets, element anchor points, and wire harness clearances designed for distinct chassis layouts. Installing an incompatible cooktop can prevent proper seating or leave radiant heating elements unsupported beneath the glass. Homeowners seeking a whirlpool glass cooktop replacement must match part numbers and superseded manufacturer codes to restore safe, dependable cooking performance.

The Whirlpool range of OEM glass cooktops is organised strictly by appliance architecture and production revisions rather than general visual categories. Across the brand’s electric range catalog, part numbers such as Whirlpool W10906141, Whirlpool W10365154, Whirlpool W10636388, Whirlpool W10472035, and Whirlpool 12002557 correspond to specific structural frames, ranging from standard freestanding electric stoves to drop-in cooking units and specialized five-element layouts. In many instances, older factory numbers have been superseded by updated codes, making precise part verification essential. Understanding how Whirlpool categorizes these cooktop assemblies ensures you purchase the exact direct-fit part required for your kitchen.

Criteria matrix What each model in this report is credited with

Rows are the criteria that come up in the pros and cons listed for this lineup. A check means the criterion is named in this report’s write-up of that model; a dash means it is not. Criteria that apply to every model, or to only one, are left out because they separate nothing.

Criterion	W10906141 Genuine OEM Range 4.9★	Cooktop Range Black Glass 4.3★	W10636388 Range Glass Cooktop 4.6★	Range Glass Cooktop W10691698 4.6★	Range Glass Cooktop Main 4.7★	W10472035 Cooktop 4.4★
Requires	✓Named	✓Named	✓Named	✓Named	Not named	✓Named
Internal	✓Named	✓Named	✓Named	Not named	✓Named	✓Named
Surface	✓Named	✓Named	Not named	✓Named	✓Named	✓Named
Genuine OEM	✓Named	✓Named	Not named	✓Named	Not named	Not named
Freestanding ranges	Not named	Not named	Not named	✓Named	✓Named	Not named
Radiant elements	Not named	Not named	Not named	✓Named	Not named	✓Named
OEM replacement	Not named	Not named	✓Named	✓Named	Not named	Not named
Part numbers	Not named	Not named	✓Named	✓Named	Not named	Not named
Criteria named	4 / 8	4 / 8	4 / 8	7 / 8	3 / 8	4 / 8

Built from the wording of this report, not from a bench test. A dash is not a fault: it only means the write-up does not mention that point for that model. Star figures are the average rating left by Amazon buyers, read from the product listing.

Whirlpool Glass Cooktops Lineup at a Glance

The Models in Detail

Whirlpool W10906141 Genuine OEM Range Main

Best for: Whirlpool and Amana 4-burner ranges

Pros

• Genuine OEM replacement
• Replaces W10853124
• One-year warranty included

Cons

• Requires partial appliance disassembly

The Whirlpool W10906141 Genuine OEM Range Main glass cooktop is a factory replacement part engineered to provide a stable, level cooking surface while safely enclosing surface cooking burners. Operating as a dedicated whirlpool OEM glass cooktop, this assembly is designed to meet strict manufacturing standards for select Whirlpool and Amana ranges. According to the listing, it serves as the official replacement for previous part number W10853124. This black main top ensures that internal heating elements remain properly positioned beneath the smooth glass plane during daily cooking.

The listing notes specifications including an item weight of 18 pounds and product dimensions of 8.75 by 30 by 34.5 inches, finished in standard black. It is supplied as a single main glass replacement assembly and includes a one-year warranty from Whirlpool. Just as maintaining clean indoor air requires changing a whirlpool air filter, replacing a compromised cooktop ensures your cooking environment remains safe and fully functional.

This model suits homeowners replacing a cracked or damaged top on a compatible Whirlpool or Amana range requiring part W10906141 or W10853124. The listing states that installation requires basic hand tools, partial appliance disassembly, and novice repair experience, with the crucial step of disconnecting power at the breaker beforehand. Where your setup requires front-screw mounting or a five-element surface, this part gives way to the W10636388 or W10472035.

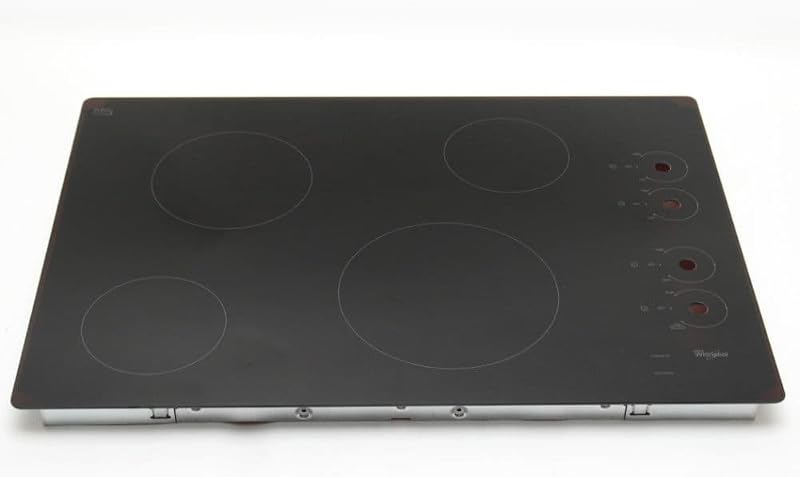

Whirlpool Cooktop Range Black Glass Cooktop

Best for: Homeowners needing direct W10365154 replacement

Pros

• OEM factory fit
• Matching black trim
• Durable glass surface

Cons

• Listing does not specify dimensions

The Whirlpool Cooktop Range Black Glass Cooktop (part number W10365154) is a factory-original replacement engineered for select cooktop and range models. Operating under part number Whirlpool W10365154, this genuine component delivers an authentic factory fit designed to maintain dependable heat transfer and long-term durability. By following original factory specifications, it ensures that your heating elements align accurately beneath the designated surface zones.

Finished in black with matching black trim, this glass cooktop replacement maintains a uniform aesthetic across compatible ranges. The package includes a single replacement unit carrying UPC 883049465470. While detailed outer dimensions are not specified in the listing data, the genuine OEM designation ensures factory-level fit and finish. Routine home appliance upkeep, much like installing a whirlpool ice maker kit, benefits substantially from using direct OEM assemblies that match internal factory mountings.

This replacement suits homeowners who have verified through their range user manual or appliance model tag that part W10365154 is the required replacement part. Because the listing does not cite legacy cross-references, it is designed for direct part-to-part replacement. If your range requires older legacy numbers such as W10543374, this model steps aside for the W10636388.

Whirlpool W10636388 Range Glass Cooktop

Best for: Ranges needing front-screw installation

Pros

• Simple Phillips screwdriver installation
• Replaces 4 prior part numbers
• Genuine OEM direct fit

Cons

• Does not fit 5-burner models

The Whirlpool W10636388 Range Glass Cooktop is an authentic OEM replacement part designed to replace cracked, chipped, or broken cooktop glass on select Whirlpool ranges. Serving as a crucial whirlpool range glass cooktop solution, this black main top installs securely over internal heating elements to restore a safe, stable cooking surface. The listing explicitly states that this component is engineered to install using front mounting screws for direct-fit service.

A primary advantage of the Whirlpool W10636388 is its documented cross-reference coverage. The listing specifies that it directly replaces older part numbers W10543374, AP5802878, 3023648, and PS8760053, making it an essential replacement during parts lookups for older ranges. Installation requires only a standard Phillips screwdriver: you simply open the oven door and remove the two front mounting retention screws. Although package dimensions are listed nominally as 1 by 1 by 1 inches, it ships as a single full-size replacement unit.

This model is ideal for homeowners tackling a DIY repair on a compatible Whirlpool electric range requiring front-screw retention. The clear installation method and extensive superseded part support make it the premier choice for compatible ranges. However, if your stove utilizes a drop-in cabinet profile or a five-burner format, you should look instead to the 12002557 or W10472035.

Whirlpool Range Glass Cooktop W10691698 Genuine

Best for: Whirlpool drop-in cooktop installations

Pros

• Drop-in specific configuration
• OEM factory durability
• Stable heating surface

Cons

• Incompatible with freestanding ranges

Best for: Stoves specifying part number W10691698

Pros

• Genuine OEM replacement
• Factory fit and performance

Cons

• Minimal technical specifications provided

The Whirlpool Range Glass Cooktop W10691698 Genuine OEM replacement part is a factory-authorized component designed for compatible Whirlpool range models. As an authentic OEM glass cooktop, it is constructed to match original equipment specifications for heat tolerance, flat surface stability, and structural strength. Using an authentic replacement protects the underlying radiant elements while maintaining smooth cookware contact across the surface.

In any thorough whirlpool glass cooktop comparison, reviewing available specification details is essential. The listing confirms that this part carries model number W10691698 and serves as a direct factory replacement for compatible ranges, though the listing does not specify exterior dimensions or legacy cross-reference codes. Just as maintaining living spaces with a dedicated whirlpool air purifier requires authentic parts, using factory OEM range components prevents the uneven heating risks associated with generic third-party glass.

This cooktop is best suited for homeowners whose range parts diagram or appliance label explicitly calls for part number W10691698. Because the listing does not provide secondary cross-reference part numbers, precise verification against your appliance model tag is required before ordering. If your repair involves legacy part codes like W10543374, you should select the W10636388 instead.

Whirlpool Range Glass Cooktop Main Top

The Whirlpool Range Glass Cooktop Main Top Kit 12002557 is an authentic factory replacement part manufactured for select range appliances. Operating under model number Whirlpool 12002557, this glass main top kit is built to factory specifications for proper fit, dependable performance, and durability. The smooth glass cooking surface provides a resilient heating area capable of handling daily cookware contact.

The product listing specifies that this component features a drop-in installation type, distinguishing it from standard freestanding electric range panels. It carries UPC 883049561455 and ships as a single unit kit. Drop-in units require precise perimeter tolerances to mount correctly into countertop openings, making OEM precision crucial to prevent liquid spills from bypassing the perimeter seal into internal wiring compartments.

This main top kit is suited specifically for owners of compatible Whirlpool drop-in range appliances requiring part number 12002557. Its drop-in design makes it incompatible with standard freestanding ranges that slide between cabinets. For standard freestanding slide-in ranges requiring front-screw retention or 5-burner layouts, consider models such as the W10636388 or the W10472035 instead.

Whirlpool W10472035 Cooktop

Best for: Whirlpool 5-burner electric range owners

Pros

• Dedicated 5-burner layout
• Generous 30 by 24 inch surface
• Protects internal radiant elements

Cons

• Requires model verification before purchase

The Whirlpool W10472035 Cooktop (Blk) is an authentic OEM glass cooktop surface assembly designed for select Whirlpool electric ranges, ovens, and stoves. Carrying part number Whirlpool W10472035, this black glass assembly restores a smooth cooking plane with dedicated positions for 5 burners. The genuine glass-ceramic construction protects internal heating elements while supporting flat, balanced cookware contact.

The listing specifies that this main top measures approximately 30 by 24 inches and features a black finish with black trim. Replacing a shattered or fractured top with this genuine assembly restores both cooking performance and original appliance appearance. The listing emphasizes discussing interchangeability with care, noting that this component fits select Whirlpool electric ranges and requires verifying model compatibility before ordering or installation.

This assembly is ideal for owners of Whirlpool electric ranges configured with five surface heating elements who need to replace damaged glass without sacrificing burner capacity. Because five-burner layouts differ significantly from four-burner chassis, this top cannot be substituted onto four-burner stoves. If your range uses a four-element setup or requires drop-in mounting, you should select the W10636388 or 12002557 instead.

Matching a Model to Your Setup

• Choose the Whirlpool W10906141 Genuine OEM Range Main if your freestanding Whirlpool or Amana four-burner range requires a black glass panel replacing part number W10853124.
• Choose the Whirlpool Cooktop Range Black Glass Cooktop (W10365154) when your appliance manual or rating label specifies part W10365154 for a black glass top with black trim.
• Choose the Whirlpool W10636388 Range Glass Cooktop if you are repairing a Whirlpool range using two front screws and your manual references legacy part numbers W10543374, AP5802878, 3023648, or PS8760053.
• Choose the Whirlpool Range Glass Cooktop W10691698 Genuine if your appliance documentation calls explicitly for part number W10691698.
• Choose the Whirlpool Range Glass Cooktop Main Top Kit 12002557 if your kitchen features a compatible drop-in range requiring a dedicated drop-in glass assembly.
• Choose the Whirlpool W10472035 Cooktop if your electric range requires a 30 by 24 inch smooth black glass top accommodating a 5-burner element layout.

Before You Buy

Before deciding which whirlpool glass cooktop to buy, consider what is included in each replacement package. The listings confirm that each item ships as a single glass replacement unit or kit, but the listings do not specify whether mounting screws, internal element support clips, wiring harnesses, or radiant burner elements are included. In standard cooktop repair scenarios, existing components such as radiant heating coils, mounting brackets, and wiring connectors must be detached from your damaged top and transferred to the new assembly.

Safety and model verification must guide your repair process. The listings indicate that installing these cooktops requires novice repair experience, basic hand tools, and partial appliance disassembly, with the essential requirement to unplug the range or turn off the circuit breaker before beginning work. Because dimensional tolerances and mounting brackets vary across model revisions, always confirm your stove’s exact model number from the cabinet frame label rather than relying on surface measurements alone.

FAQ

How do I find the correct model number for a whirlpool glass cooktop replacement?

Locate the appliance rating label on your range cabinet, which is typically found behind the storage drawer, along the oven door frame, or on the lower chassis. Cross-reference that complete model number with Whirlpool technical diagrams to confirm whether your appliance requires part W10906141, W10365154, W10636388, W10691698, 12002557, or W10472035.

Can I replace a four-burner cooktop with a five-burner Whirlpool glass top?

No, you cannot substitute a five-burner cooktop like the Whirlpool W10472035 onto a range built for four burners. Each glass assembly features designated element graphics that correspond directly to the internal mounting brackets and wiring layouts of compatible stoves. Using a mismatched burner configuration results in misaligned heating zones and improper element seating.

What tools do I need to install the Whirlpool W10636388 cooktop?

According to the product listing, installing the Whirlpool W10636388 typically requires only a standard Phillips screwdriver. You open the oven door, remove the two front mounting screws, and detach the damaged top from the frame before securing the new assembly over the heating elements.

Are radiant heating elements included with a replacement whirlpool range glass cooktop?

The product listings state that these assemblies include the genuine OEM replacement glass main top unit. The listings do not specify the inclusion of heating elements, limiters, or wire harnesses. When replacing a broken cooktop, your existing radiant heating elements are transferred from the old glass assembly to the replacement unit.

Does the Whirlpool W10906141 cooktop work with Amana ranges?

Yes, the product listing confirms that the black main top for Whirlpool W10906141 is designed for use with select Whirlpool and Amana ranges, and it directly replaces previous part number W10853124. Check your specific Amana model number against official parts lists to confirm compatibility.
